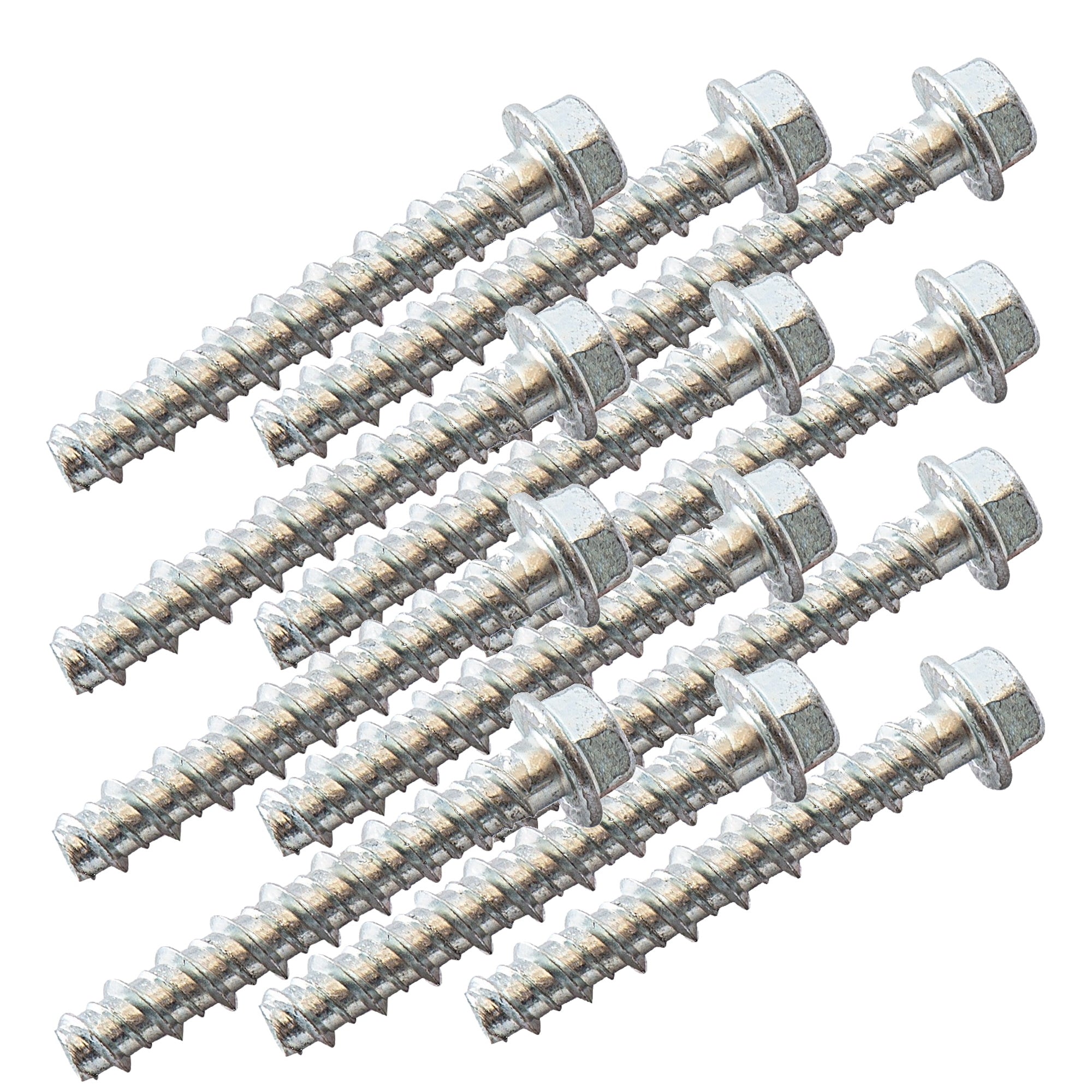

- GYM MASTER GM3 Masonry Bolt Fixing Kit - Set of 12

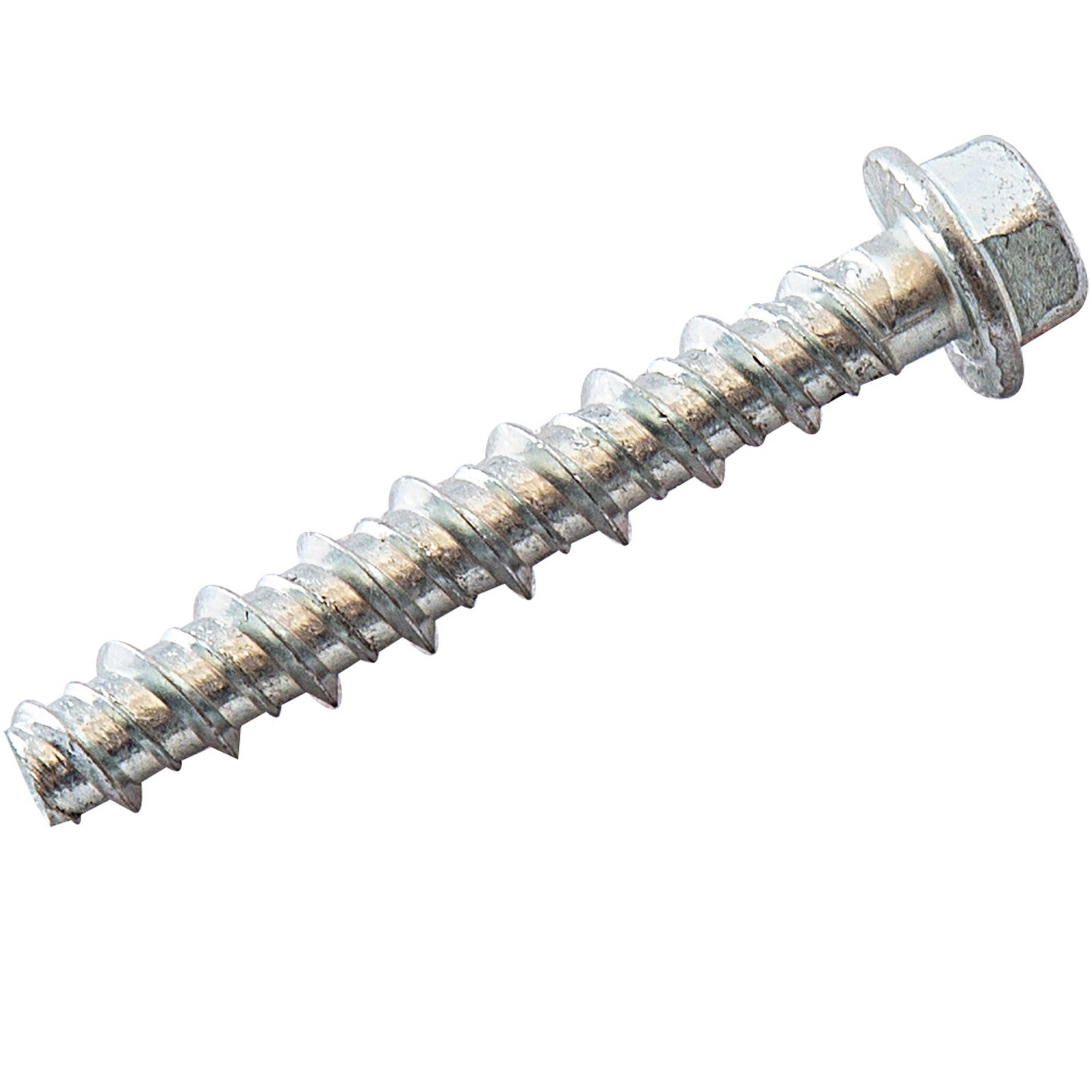

- Zinc plated finish with 13mm hexagon head and integrated washers.
- These M10 x 80mm bolts are fast and secure to install
- The undercutting action provides a positive anchorage with no expansion forces like those created by traditional expansion bolts. This causes less damage to the target surface and can also allow these to be used closer to the edge.
- Suited to the GM3 range, depending on your flooring.
- Always seek expert advice from a professional such as a builder when deciding what fixings to use when securing your kit to the ground or wall

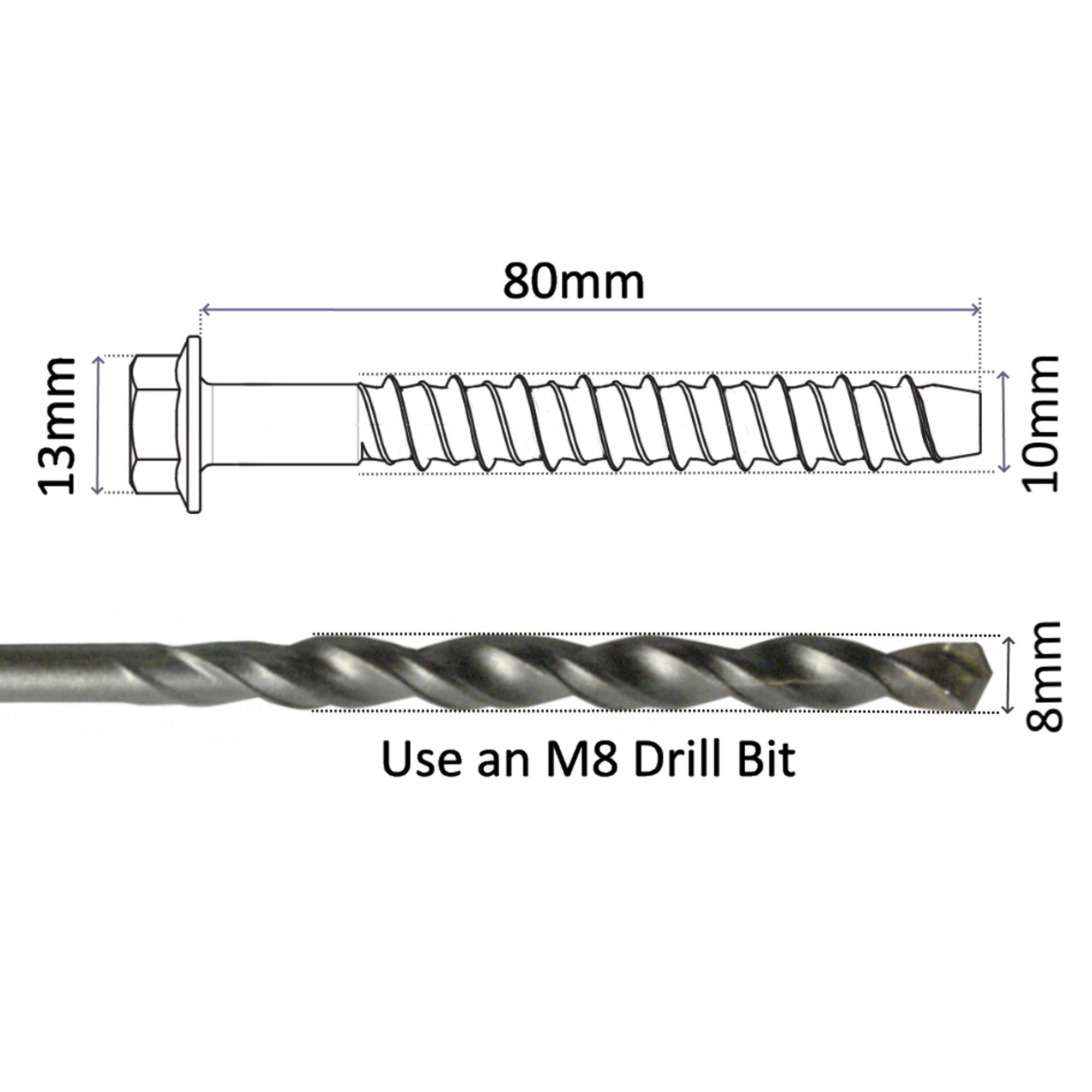

- Spanner Size Required:13mm. Bolt Length: 80mm, Thread Size: 10mm, Drill Diameter Required: 8mm.
- Please Note: Not Suitable for Commercial Use.
RELATED PRODUCTS
GM3 Power Rack Squat Cage - Fully Customisable
Now: £361.00
Was: £379.99
Using voucher "Spring05", get 5% off
*automatically applies at checkout
Your browser does not support our video.
Specification
This Power Rack is available in 2 depths and 3 heights for any home or garage gym
The GM3 has a high quality 3.0mm 11 Gauge steel frame coupled with a hard wearing hammertone gunmetal powder coating
With Laser Cut numbering to help quick selection, this power rack is fully adjustable and also features westside spacing
In addition to a Pull Up Bar, each rack includes 2 x Pin and Pipe Safety Bars, 2 x High Spec Laser Cut J-Cups with UHMW to protect your Barbells.
Please Note: The pull-up bar on the 186cm rack is fairly low and will therefore be less functional for taller users.
Strong design - 400kg max load.
Many accessories are available and in addition more equipment is constantly under development
The hole diameter is 16.5mm. To suit attachments with a Pin Diameter of 15.5mm
Please Note: Not Suitable for Commercial Use.

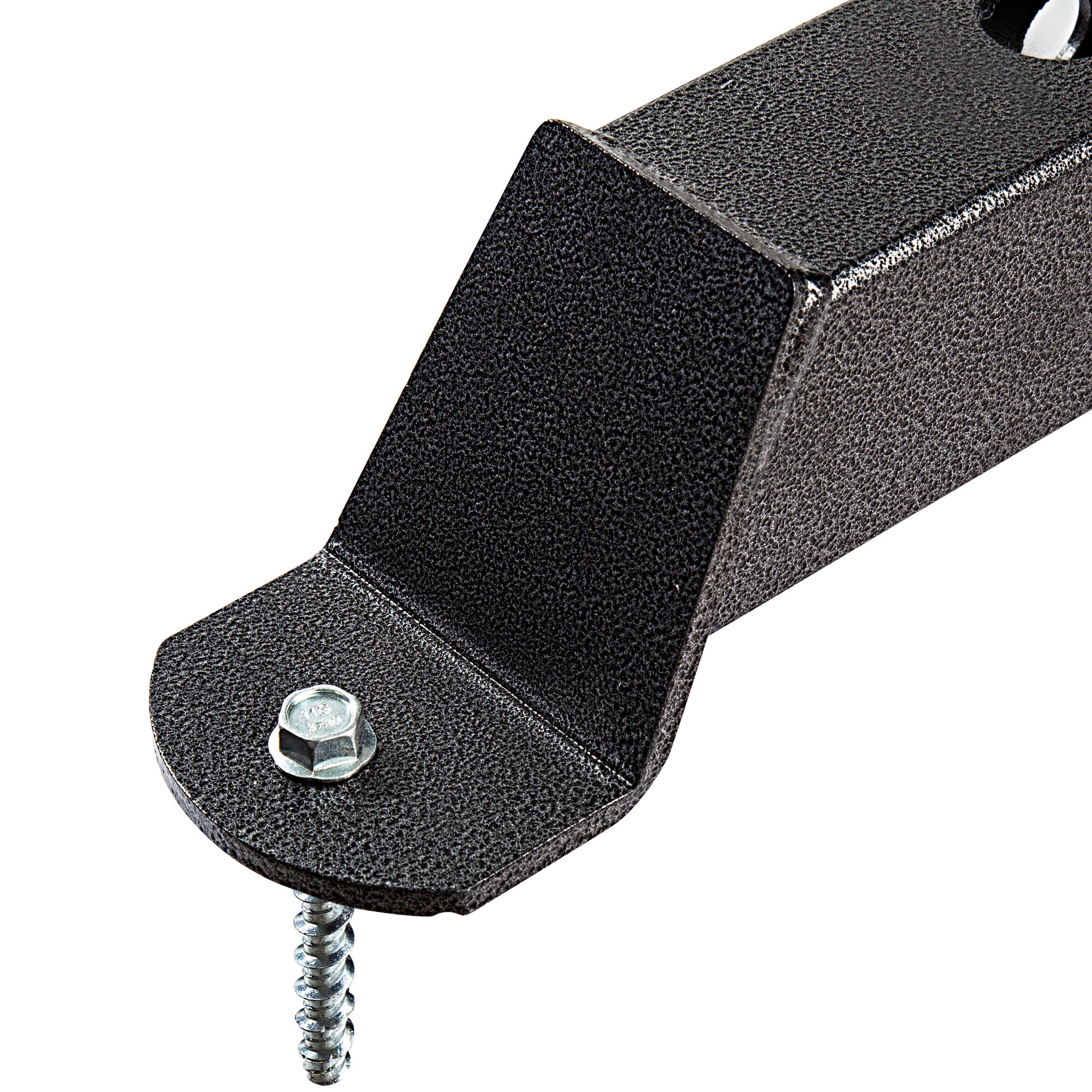

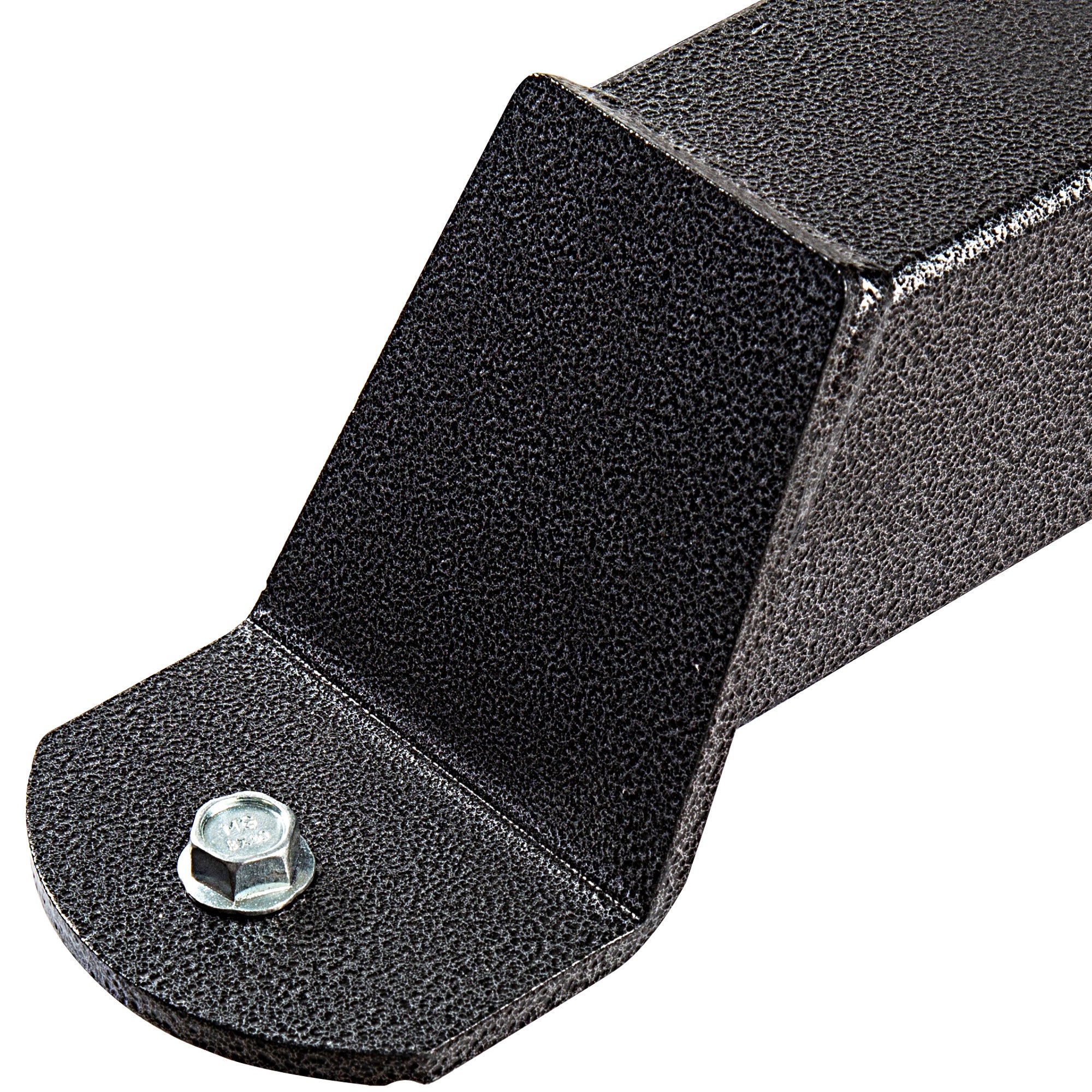

Installing Your GYM MASTER Power Rack Cage Squat Rack
The GM3 Home Gym Power Rack must be bolted down - Each foot has 3 x 11mm holes
The required fixings vary depending on your floor type and so they are not included. Therefore, we strongly recommend that you consult a builder to recommend fixings for your specific floor.
Our fixing kit for instance which is available separately, is suitable for Masonry floors only.
Approximate Power Rack Dimensions
Approx. Power Rack Dimensions:
Max Width: 133cm
Width between cage uprights: 110cm
Suits 6ft International, or 7ft bars.
The following dimensions vary according to your selection:
186 x 60 Max Height: 186cm, Max Depth: 81cm.
186 x 90 Max Height: 186cm, Max Depth: 111cm.
206 x 60 Max Height: 206cm, Max Depth: 81cm.
206 x 90 Max Height: 206cm, Max Depth: 111cm.
226 x 60 Max Height: 226cm, Max Depth: 81cm.
226 x 90 Max Height: 226cm, Max Depth: 111cm.
